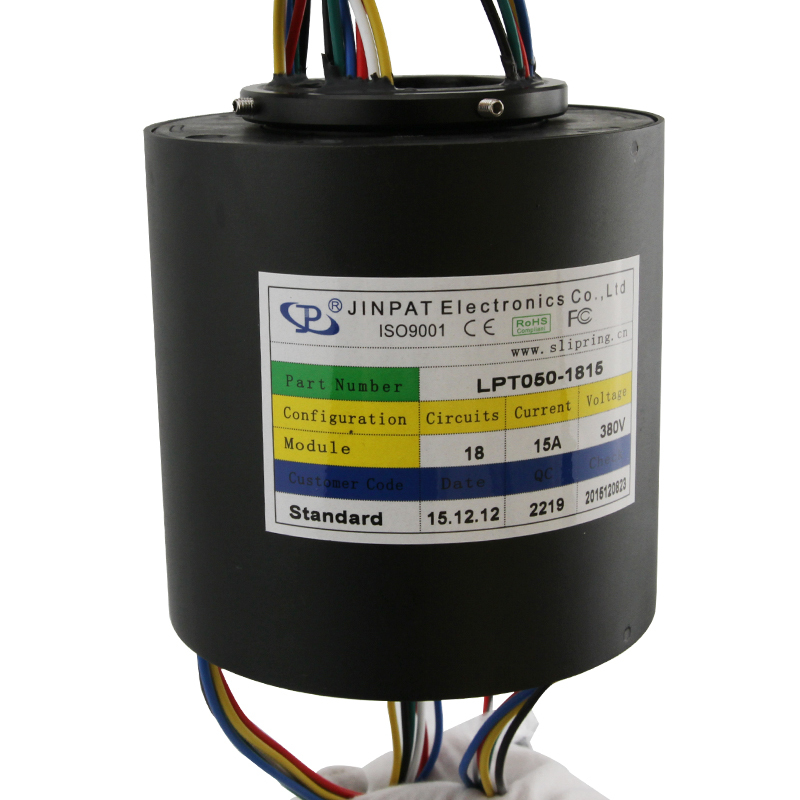

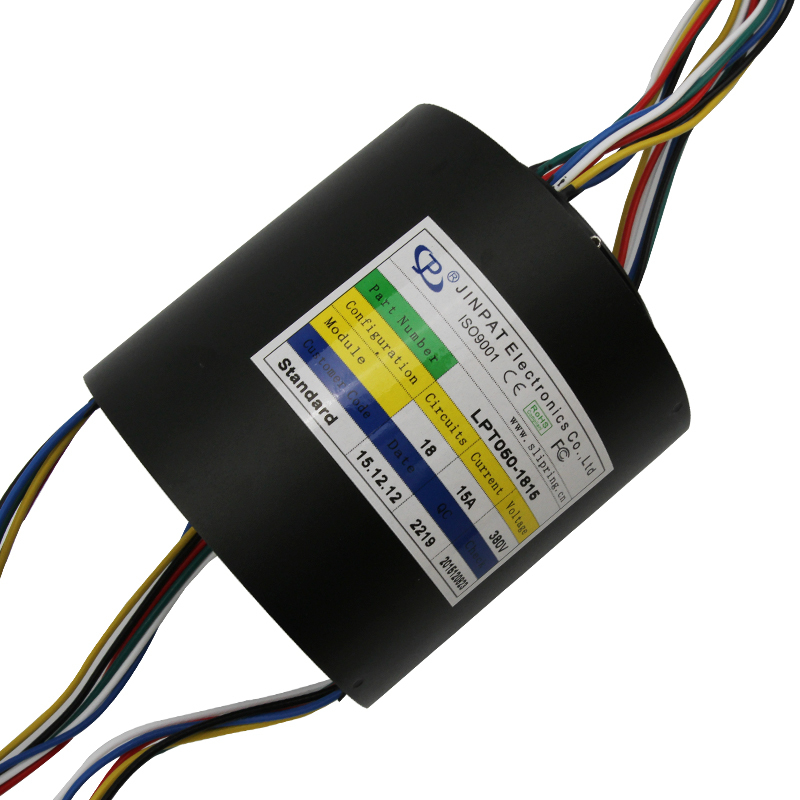

Through Hole Slip Ring 18 Circuit 15A 50mm Via Diameter
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| Via diameter | 50mm | Rotor diameter | 300mm |
|---|---|---|---|
| Stator diameter | 300mm | Working speed | 0~300rpm |
| Circuits | 1-24 circuits | Working temperature | -20℃~ +60℃ |
| Working humidity | 60%RH or higher | Voltage rating | 240VAC/DC or higher |
| Current rating | 2A/5A/10A/15A per circuit | Dielectric strength | ≥1000V@50Hz between each circuit |
| Insulation resistance | 500MΩ@ 500VDC | Electrical noise | 30mΩ Min |
| Contact material | Precious metal | Lead wire length | 300mm |
| Operating speed | 0-300rpm | ||
| 강조하다 | 18 circuit slip ring,15A through hole slip ring,50mm via diameter slip ring |
||
제품 설명
Through Hole Slip Ring 18 Circuit 15A, Crane Slip Ring Rotary Joint
Product Attributes
| Attribute | Value |
|---|---|
| Type | Electronic Accessories |
| Via diameter | 50mm |
| Rotor | 300mm |
| Stator | 300mm |
| Working speed | 0~300rpm |
Product Description

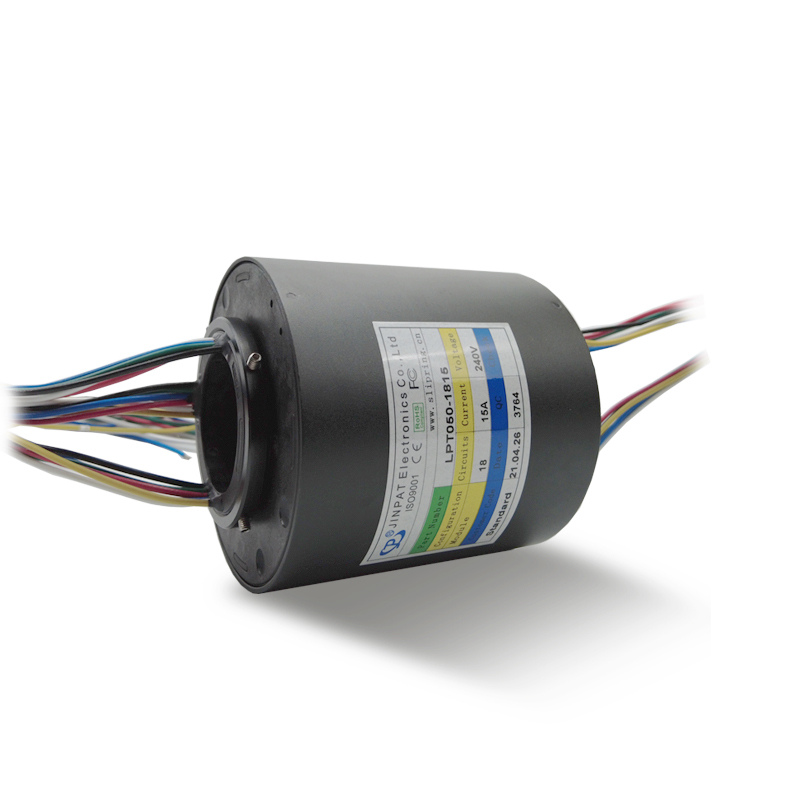

The LPT050-1815 hollow shaft slip ring features 18 circuits with 15A per circuit, specifically designed for crane applications. Utilizing advanced fiber brush technology, it offers multiple contact points per brush bundle with low contact force and minimal wear rates.
Key benefits include no lubrication requirements, virtually no wear debris production, and field-serviceable brush blocks.
Specifications
| Parameter | Value |
|---|---|
| Circuits | 1-24 circuits |
| Operating Speed | 0-300rpm |
| Working Temperature | -20℃ to +60℃ |
| Working Humidity | 60%RH or higher |
| Voltage Rating | 240VAC/DC or higher |
| Current Rating | 2A/5A/10A/15A per circuit |
| Dielectric Strength | ≥1000V@50Hz between circuits |
| Insulation Resistance | 500MΩ@500VDC |
| Electrical Noise | 30mΩ Min |
| Contact Material | Precious metal |
| Lead Wire Length | Standard 300mm (11.811inch) |
Key Features
- Transfer analog and data signals
- Compatible with data bus protocols
- Long life, maintenance free operation
- Easy installation process
- 360° continuous rotation for power and data transmission
Typical Applications
- Military and medical equipment
- Wind power generation systems
- Manufacturing and control equipment
- Robotics and radar antenna systems
- Construction and test equipment
- Packaging machinery and rotary sensors
Customization Options
- Inner/outer diameter and length
- Working speed specifications
- Number of circuits
- Current and voltage ratings
- Wire length and connection terminals
- Housing material and color
- Protection level requirements
- Combined or separate power/signal transmission
Product Outline
Manufacturer Advantages
- 12,000 square meter production facility with 500+ employees
- National High and New Technology enterprise with 69 patents
- Global partnerships with renowned enterprises
- Over 10,000 successful designs across multiple industries
- 20+ years of production and R&D experience since 1996
- Free custom slip ring solutions for diverse equipment
- Fast delivery times
Technical Support
Our engineering team provides comprehensive support for selecting the optimal slip ring solution based on your specific requirements including circuit count, voltage/current ratings, operating speed, and mounting configuration.
