6 Circuit 1A 240VAC Mini Slip Ring for High Precision Equipment
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 회로 번호 | 6 | 현재 등급 | 1A |
|---|---|---|---|
| 전압 | 240vac | 유전력 | 회로 사이에 50Hz 이상 500V |
| 격리 | 100MΩ@500VDC | 전기 소음 | ≤15mΩ |
| 작업 속도 | 0~300 Rpm | 접촉 자료 | 귀금속 |
| 와이어 크기 | 30# 은도금 구리 UL, 테플론 | 리드 와이어 길이 | 회전자 :250 밀리미터 ; 고정자 :250 밀리미터 |
| 작업 온도 | -20~+60C | 습기 | ≤60%RH |
| 보호 등급 | IP54 | 스타일 | 소형 슬립 링 |
| 연락처 유형 | 금접점 | ||
| 강조하다 | 6 circuit mini slip ring,240VAC high precision slip ring,1A rotary slip ring |
||
제품 설명
Slip Ring VW 6 Wires with 1A Current & Low Electrical Noise
High Precision Mini Slip Ring for Industrial Applications
Key Features
- 6 circuits with 1A current rating
- Low electrical noise (≤15mΩ)
- Gold contacts at rotary interface
- Color-coded lead wires for easy installation
- Compact capsule slip ring design
Product Specifications
| Attribute | Value |
|---|---|
| Type | Electronic Accessories |
| Circuit Number | 6 |
| Current Rating | 1A |
| Voltage | 240VAC |
| Working Speed | 0~300 rpm |
| Working Temperature | -20~+60℃ |
| Style | Capsule slip ring |
| Dielectric Strength | ≥500V@50Hz between circuits |
| Insulation | 100MΩ@500VDC |
| Wire Size | 30# silver plated copper UL, Teflon |
| Lead Wire Length | Rotor:250mm; Stator:250mm |
| Humidity | ≤60%RH |
| Protection Grade | IP54 |
Product Description

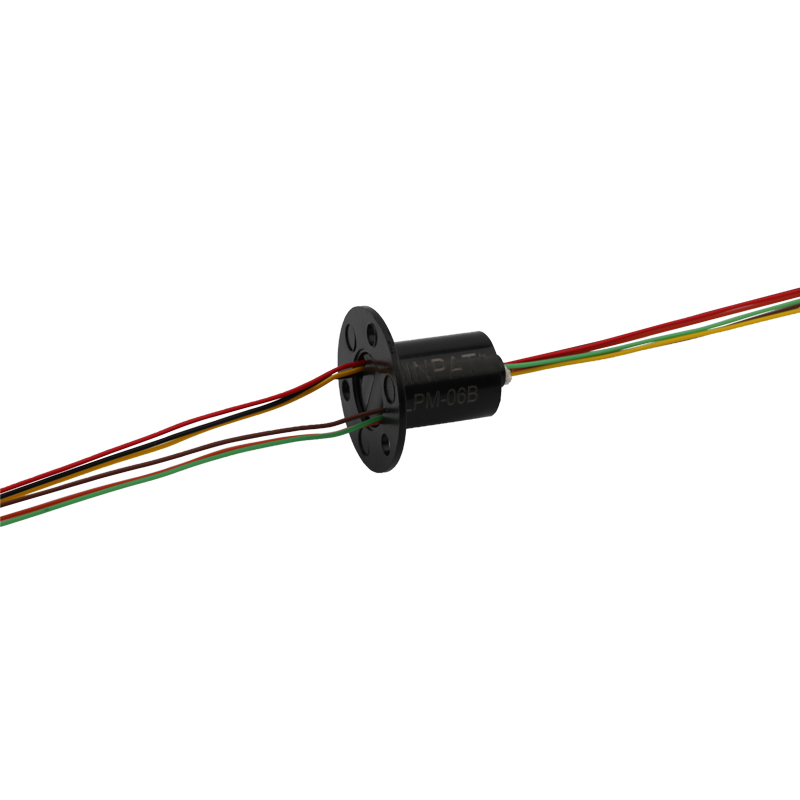

The LPM-06B miniature slip ring is designed for electromechanical systems requiring continuous rotation while transferring power or data between stationary and rotating parts. This standard off-the-shelf unit features gold contacts at the rotary interface and color-coded lead wires for simplified electrical connections.
Applications
- Electric devices
- Medical facilities
- Industrial machinery
- LED industry
- Medical equipment
- High-precision facilities
Product Images
Manufacturer Advantages
- 12,000 square meter plant with 500+ employees
- National High and New Technology award recipient with 69 patents
- 20+ years of production and R&D experience since 1996
- 10,000+ successful designs for civil, military, commercial and industrial applications
- Free custom slip ring solutions available
- Fast delivery times
Frequently Asked Questions
What is a slip ring?
A slip ring is an electromechanical device that allows transmission of power and electrical signals from a stationary to a rotating structure. It improves mechanical performance, simplifies system operation, and eliminates damage-prone wires.
How do I choose a slip ring?
Selection requires details about your application's operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. Contact us for assistance with custom solutions.
