24 Circuit Slip Ring 240V 2A Gold Contact for Robotic Arm
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 회로 수 | 24 | 전압 | 240 VAC / DC |
|---|---|---|---|
| 현재 등급 | 회로 당 2 amps | 작동 속도 | 0-200 rpm |
| 접촉 자료 | 금에 대한 금 | 온도 범위 | -20 ℃ ~ +60 ℃ |
| 리드 크기 | 30# 은금 구리 | 리드 길이 | 250 mm |
| 유전력 | ≥200 VAC @50Hz | 단열성 저항 | 50 MΩ @ 500 VDC |
| 전기 소음 | 30mΩmin | 회전형 | 마디 없는 |
| 접촉 저항 | 낮은 | 토크 | 낮은 |
| 유지 | 무료 | ||
| 강조하다 | 24 circuit slip ring gold contact,240V slip ring for robotic arm,2A rotary slip ring with warranty |
||
제품 설명

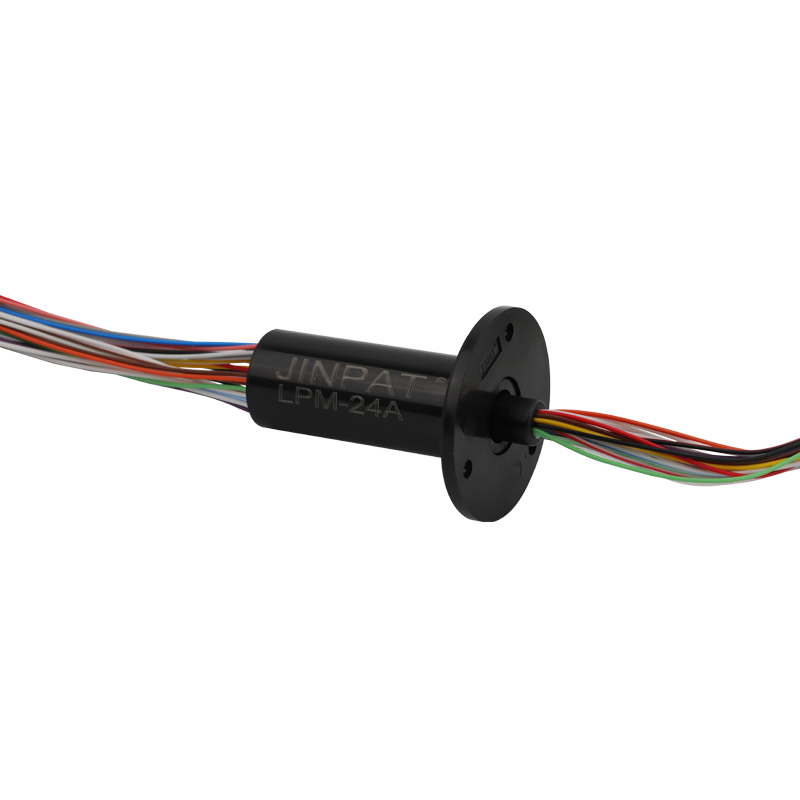

JINPAT 24 Passage Capsule Slip Ring
Compact Design with Ultra-Low Resistance and Long Working Life for Robotic Arm Applications
Special Offer: Bargain Price Only on Alibaba
Product Overview
This 24-circuit slip ring provides a reliable rotary electrical interface for systems requiring continuous rotation while transferring power or data between stationary and rotating structures. Also known as a rotary electrical joint, commutator, or collector, it features gold-to-gold contacts for exceptional durability.
Key Specifications
| Attribute | Value |
|---|---|
| Type | Electronic Accessories |
| Number of Circuits | 24 |
| Voltage | 240 VAC/DC |
| Current Rating | 2 amps per circuit |
| Operating Speed | 0-200 rpm |
| Contact Material | Gold to Gold |
| Temperature Range | -20℃ to +60℃ |
| Dielectric Strength | ≥200 VAC @50Hz between circuits |
| Insulation Resistance | 50 MΩ @ 500 VDC |
Product Features
- Smooth rotation with minimal friction
- High reliability and stable performance
- Compact design for space-constrained applications
- Extended working life with gold-to-gold contacts
- Low electrical noise and resistance
- Maintenance-free operation
Technical Advantages
- Gold-to-gold contact ensures maximum durability
- Consistent operation across full speed range
- Minimal current fluctuation
- 30mΩ minimum electrical noise
- Standard 250mm (9.843inch) lead length
Product Images
Manufacturer Information
JINPAT Electronics specializes in high-quality slip ring solutions with over 20 years of experience in design and manufacturing.
Company Highlights
- 12,000 square meter production facility with 500+ employees
- Recognized as National High and New Technology enterprise
- Holder of 69 patents in slip ring technology
- Established in 1996 with extensive R&D experience
- Over 10,000 successful designs across multiple industries
- Global partnerships with leading enterprises
- Fast delivery and custom solutions available
Frequently Asked Questions
What is a slip ring?
A slip ring is an electromechanical device that enables power and signal transmission between stationary and rotating structures, eliminating damage-prone dangling wires and improving mechanical performance.
Available Slip Ring Types
- Electrical Slip Rings (capsule, through-bore, miniature)
- Signal Slip Rings (USB, fiber optic, high frequency)
- Pneumatic/Hydraulic Rotary Unions
- Custom Solutions
- Large Volume Series
Selection Guidance
For optimal slip ring selection, provide your application's operating parameters including circuit count, voltage/current requirements, speed, and mounting configuration. Our engineers can assist with custom solutions tailored to your specific needs.
