High Frequency RF Slip Ring 50MHz-3GHz SDI Signal Low Noise
제품 상세 정보
| 대역폭 | 50MHz-3GHz | 신호 유형 | SDI |
|---|---|---|---|
| 보호 등급 | IP54 | 작업 속도 | 50 rpm |
| 회로 | 12 | 현재 등급 | 2A 또는 더 높습니다 |
| 전압 | 240vac | 작업 온도 | -20~+60C |
| 전기 접촉 | 금에 대한 금 | 습기 | 60%RH |
| 리드 와이어 길이 | 회전자 :250 밀리미터 ; 고정자 :250 밀리미터 | 단열성 저항 | 500VDC@1000mΩ |
| 주택 자료 | 알루미늄 합금 | 특징적인 임피던스 | 50Ω |
| 회전 | 연속적인 360' | ||
| 강조하다 | high frequency RF slip ring,50MHz-3GHz SDI slip ring,low noise rotary slip ring |
||
제품 설명
High Frequency RF Slip Ring
360° continuous rotation with compact design for electrical applications
Product Attributes
| Attribute | Value |
|---|---|
| Type | Electronic Accessories |
| Bandwidth | 50MHz-3GHz |
| Signal | SDI |
| Features | Remote Control |
| Advantage | Low electrical noise |
Product Description

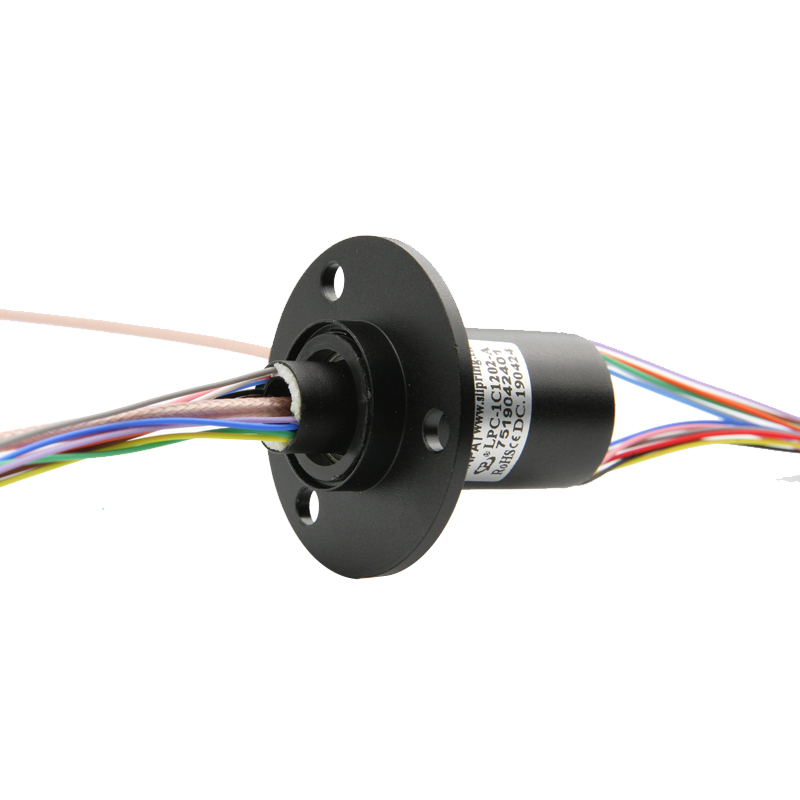

The LPC-1C1202-A slip ring is a specialized unit with RF Coaxial Connector featuring a bandwidth of 50MHz-3GHz. Color-coded lead wires on both stator and rotor simplify electrical connections.
Utilizing a 90° V-groove ring design, the LPC-1C1202 delivers smoother operation, lower torque, and reduced electrical noise compared to competitive models.
Technical Parameters
| Parameter | Value |
|---|---|
| Protection Grade | IP54 |
| Working Speed | 50 RPM |
| Circuits | 12 |
| Current Rating | 2A or higher |
| Voltage | 240VAC |
| Working Temperature | -20°C to +60°C |
| Electric Contact Material | Gold to Gold |
| Humidity | 60%RH |
| Lead Wire Length | Rotor: 250mm; Stator: 250mm |
| Insulation | 1000MΩ@500VDC |
| Housing Material | Aluminum Alloy |
| Characteristic Impedance | 50Ω |
Key Advantages
- Low torque minimizes system torque budget
- Compact design fits demanding space requirements
- Smooth running operation
- Low electrical noise for clean signal transmission
- Quick shipment available for urgent requirements
- 360° continuous rotation capability
- High bandwidth transfer performance
- SDI signal transfer capability
Typical Applications
- Electrical test equipment
- Manufacturing and process control systems
- Indexing tables
- CCTV pan/tilt camera mounts
- Robotics and rotary sensors
- Emergency illumination equipment
- Exhibit and display systems
- Aviation, military, medical, and instrumentation equipment
