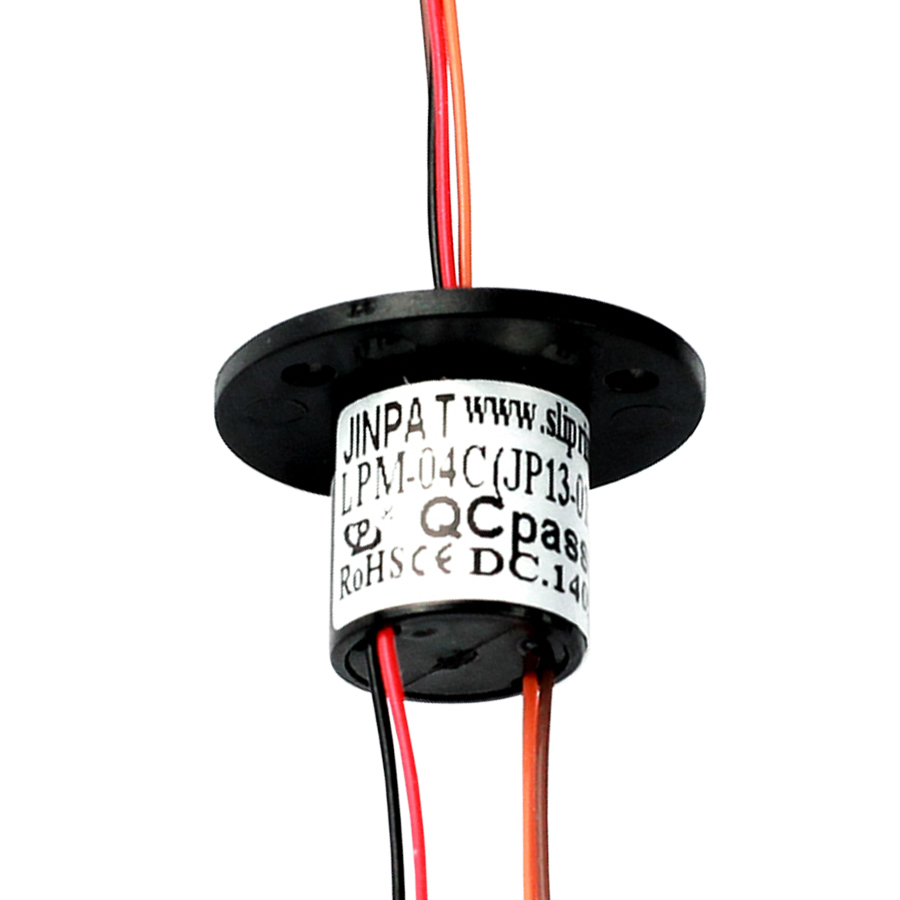

4 Circuit Miniature Slip Ring for Robot Arm 200RPM 240V
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 회로 수 | 4 | 작업 속도 | 최대 200rpm |
|---|---|---|---|
| 전압 | 240VDC/AC | 현재 등급 | 와이어 당 2A/4A |
| 주택 자료 | 알루미늄 합금 | 보호 등급 | IP65 |
| 접촉 자료 | 은에서은에서은 | 작동 온도 | -30~+80°C |
| 최대 전원 공급 장치 | 회로 당 600A | 신호 채널 | 선택 과목 |
| 전선 연결 | 선택 과목 | 유지 보수가 없습니다 | 2 년 |
| 충격 방지 디자인 | 예 | 저온 저항 | 예 |
| 인코더 호환성 | 절대 인코더 사용 가능 | ||
| 강조하다 | miniature slip ring for robot arm,4 circuit slip ring 240V,rotary slip ring 200RPM |
||
제품 설명
Small Size Capsule Slip Ring With 4 Circuits Digital Signals Transmission, Low Torque
Product Specifications
| Attribute | Value |
|---|---|
| Type | Electronic Accessories, miniature slip ring |
| Number of circuits | 4 |
| Working speed | 200rpm max. |
| Voltage | 240VDC/AC |
| Current rating | 2A/4A per wire |
| Feature | Robot arm, Remote Control |
Product Description
A slip ring is a rotary coupling used to transfer electric current from a stationary unit to a rotating unit. This is accomplished by either:
- Holding the center core stationary while the brushes and housing rotate around it.
- Holding the brushes and housing stationary while the center core is allowed to rotate.
Key Features
- Compact structure with flexible installation
- Reliable and durable for long-term operation
- Aluminum alloy housing with IP65 protection grade - suitable for dusty environments
- Alloy brush with precious contact material (silver to silver) for excellent conductivity and low signal loss
- Shockproof design with operating temperature range: -30°C to +80°C
- Compatible with absolute encoders and potentiometers
- Power supply up to 600 amperes per circuit with optional signal channels and wire connection methods
- Short delivery time with available customized solutions
- Long lifespan with maintenance-free operation for 2 years
Product Benefits
- Compact size for space-constrained applications
- Low friction operation
- Long life and high reliability
- Quick delivery and cost-effective solution
- Easily customizable to specific requirements
- CE and RoHS compliant
Manufacturer Advantages
Welcome to JINPAT Electronics - Providing free custom slip ring solutions to propel your technology forward.
- 12,000+ square meter facility with 500+ employees
- Recognized as "National High and New Technology" enterprise with 69 patents
- Global partnerships with renowned enterprises and worldwide agents
- 10,000+ successful designs across civil, military, commercial, and industrial applications
- Established in 1996 with over 20 years of production and R&D experience
- Free custom solutions adaptable to various equipment requirements
- Fast delivery times
Typical Applications
