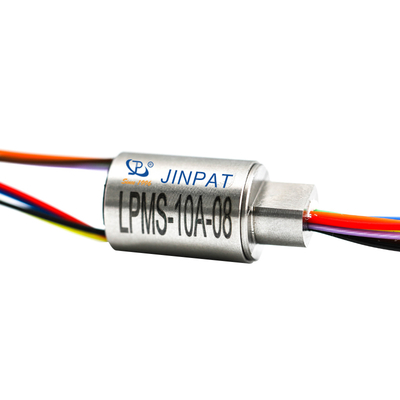

8 Circuit Capsule Slip Ring 1A 240VAC/DC Gold Contacts
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 회로 수 | 8 | 전압 | 240 VAC / DC |
|---|---|---|---|
| 현재 등급 | 회로 당 1개 앰프 | 작동 속도 | 0-200 rpm |
| 접촉 자료 | 금에 대한 금 | 온도 범위 | -20에서 +60 |
| 리드 크기 | 30# 은금 구리 | 리드 길이 | 250 mm (9.843 인치) |
| 절연 저항 | 50 MΩ @ 500 VDC | 전기 소음 | 30mΩ 민 |
| 주택 자료 | 엔지니어링 플라스틱 또는 금속 | 회전 | 연속적인 360' |
| 대역폭 전송 | 높은 | 토크 | 낮은 |
| 설계 | 콤팩트 | ||
| 강조하다 | 8 circuit slip ring,capsule slip ring with gold contacts,240VAC/DC slip ring |
||
제품 설명
LPMS-10A-08 Super Miniature Slip Ring
Low Torque 1A/Road, Can Be Mixed Motor Slip Ring
Product Description
Bargain Price Only in Alibaba
The LPMS-10A-08 super miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
The LPMS-10A-08 allows tremendous flexibility in dealing with system size restrictions. It is available in 1 to 8 circuit configurations.
Key Features
- 8 circuits models
- 1 amp per circuit, 240VAC/DC
- Precision assembly to provide exceptional rotational life
- Speed up to 200 rpm continuous
- Gold-Gold contacts
- Flexible, color-coded, silver-plated, lead wires
- Superior handling of low level control signals
- Metal housing optional
Technical Specifications
| Operating Speed | 0-200 rpm |
|---|---|
| Number of Circuits | 8 |
| Voltage | 240 VAC/DC |
| Current Rating | 1 amp per circuit |
| Temperature Range | -20 to +60°C |
| Contact Material | Gold to Gold |
| Lead Size | 30# silver plated copper |
| Lead Length | Standard 250 mm (9.843inch) |
| Insulation Resistance | 50 MΩ @ 500 VDC |
| Electrical Noise | 30mΩ Min |
| Housing Material | Engineering plastic or metal |
Product Advantages
- Low torque minimizes system torque budget
- Compact design to fit in the most demanding space
- Smooth running
- Low electrical noise
- Quick shipment per your urgent requirement
- 360° continuous rotation
- High bandwidth transfer capability
- Rapid shipment
