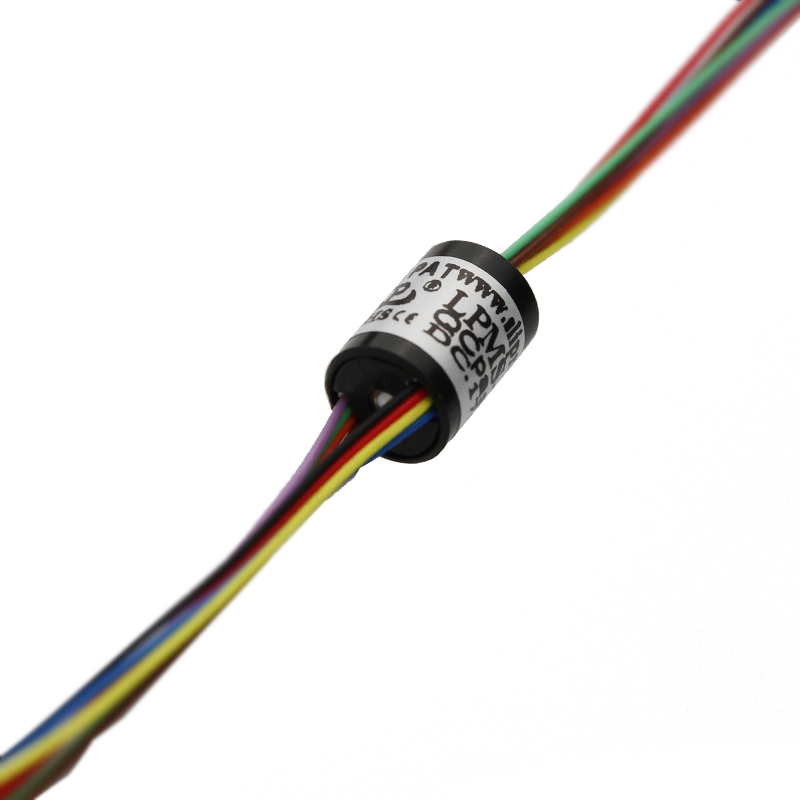

8 Circuit Capsule Slip Ring 1A 240VAC/DC Precious Metal
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 회로 수 | 8 | 현재 등급 | 와이어 당 1A |
|---|---|---|---|
| 접촉 자료 | 귀금속 | 작동 속도 | 0-300 rpm |
| 전압 | 240 VAC / DC | 온도 범위 | -20 ℃ ~ +60 ℃ |
| 동적 저항 변동 | ≤35mΩ | 리드 길이 | 250 mm |
| 작동하는 습도 | 60% RH 또는 더 높습니다 | 주택 자료 | 공장 플라스틱 |
| 전기 소음 | 1mΩMin | 연락처 유형 | 골드-골드 |
| 와이어 유형 | 실버 도금 | 회전 | 연속적인 360' |
| 속도 | 연속적인 300 rpm | ||
| 강조하다 | 8 circuit capsule slip ring,1A 240VAC/DC slip ring,precious metal slip ring |
||
제품 설명
LPMS-08A Capsule Slip Ring with USB Compatibility
Premium Quality at Competitive Pricing
Bargain Price Only in Alibaba
Product Overview
The LPMS-08A slip ring is an electromechanical device that enables the transmission of power and electrical signals between stationary and rotating structures. Ideal for any system requiring rotation while maintaining electrical connections.
Technical Specifications
| Operating Speed | 0-300 rpm |
| Circuits | 8 |
| Voltage | 240 VAC/DC |
| Temperature Range | -20℃ to +60℃ |
| Contact Material | Precious metal |
| Dynamic Resistance Fluctuation | ≤35mΩ |
| Lead Length | Standard 250 mm (9.843inch) |
| Working Humidity | 60% RH or higher |
| Housing Material | Factory plastic |
| Electrical Noise | 1mΩMin |
Key Features
- 8 circuit configuration with 1 amp per circuit capacity
- Precision assembly for exceptional rotational lifespan
- Continuous operation up to 300 rpm
- Gold-Gold contact points for reliable connectivity
- Color-coded, silver-plated lead wires for easy installation
- Excellent performance with low-level control signals
Product Advantages
- Space-saving compact design for constrained installations
- Low-noise operation with smooth rotation
- 360° continuous rotation capability
- Customizable with special components
- Expedited shipping available for urgent requirements
Product Dimensions
Product Display
Manufacturer Advantages
JINPAT Electronics provides free custom slip ring solutions to propel your technology forward.
- 12,000+ square meter facility with 500+ employees
- Recognized as "National High and New Technology" enterprise
- Holder of 69 patents for innovative solutions
- Global partnerships with renowned enterprises
- 10,000+ successful designs across multiple industries
- Established in 1996 with 20+ years of R&D experience
- Fast delivery on standard and custom solutions
Typical Applications
Frequently Asked Questions
1. What do we do?
We specialize in developing, designing, and manufacturing high-quality slip rings, offering comprehensive solutions for rotating systems.
2. What is a slip ring?
A slip ring enables power and signal transmission between stationary and rotating components, eliminating damage-prone dangling wires while improving mechanical performance.
3. What kinds of slip rings do we offer?
- Electrical Slip Rings (capsule, through-bore, miniature)
- Signal Slip Rings (USB 2.0/3.0, fiber optic, high frequency)
- Pneumatic/Hydraulic Rotary Unions
- Custom Slip Ring Solutions
- Large Volume Production
4. How do I choose a slip ring?
Selection requires details about your application's circuits, voltage/amperage requirements, operating speed, and mounting configuration. Contact our engineers for assistance.
5. Do you offer custom slip rings?
Yes, our engineering team develops tailored solutions for unique requirements. Contact us to discuss your specific needs.
