48VAC 4-Wire Miniature Slip Ring 1A Current 100 RPM Speed
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 회로 번호 | 4 | 현재 등급 | 1A |
|---|---|---|---|
| 전압 | 48VAC | 작업 속도 | 0~100 rpm |
| 작업 온도 | -20~+60C | 전기 소음 | ≤15mΩ |
| 접촉 자료 | 귀금속 | 주택 자료 | 스테인레스 스틸 |
| 와이어 크기 | 30# 은도금 구리 UL, 테플론 | 리드 와이어 길이 | 회전자 :250 밀리미터 ; 고정자 :250 밀리미터 |
| 보호 등급 | IP54 | 스타일 | 소형 슬립 링 |
| 유형 | 전기 액세서리 | 연락처 유형 | 금접점 |
| 케이블 색깔 | 칼라 코딩됩니다 | ||
| 강조하다 | 48VAC miniature slip ring,4-wire slip ring 1A current,capsule slip ring 100 RPM |
||
제품 설명

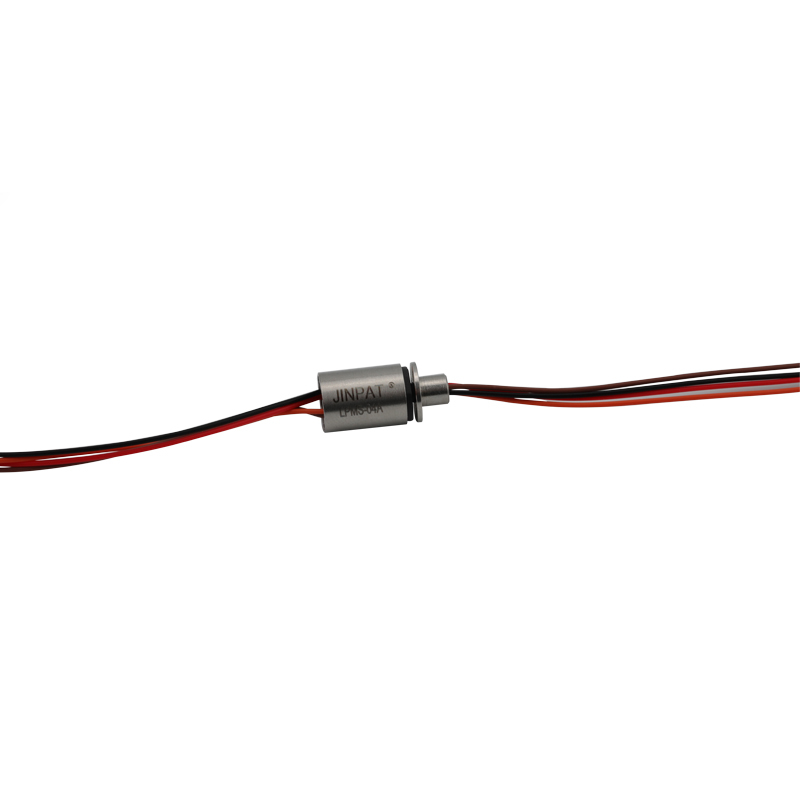

48 VAC 4-Wire Super Miniature Slip Ring with Light Small Figure Illumination Electrical Contacts
Product Description

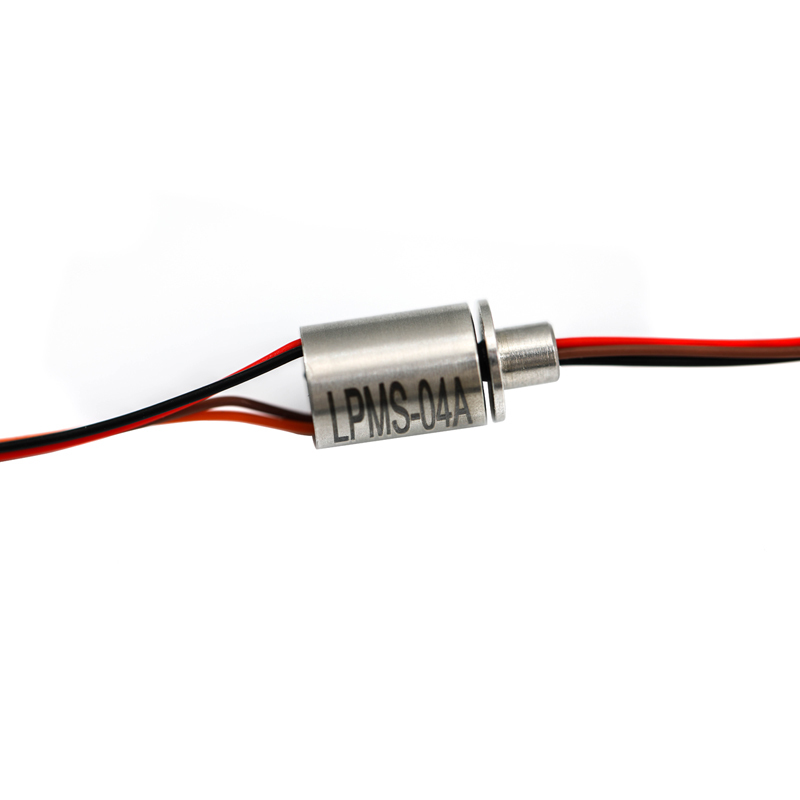

The LPMS-04A super miniature slip ring is designed for electromechanical systems requiring continuous rotation while transferring power or data between stationary and rotating parts. This standard off-the-shelf unit features gold contacts at the rotary interface and color-coded lead wires for simplified electrical connections.
Specifications
| Circuits | 4 |
|---|---|
| Current Rating | 1A |
| Voltage | 48 VAC |
| Electrical Noise | ≤15mΩ |
| Working Speed | 0~100 RPM |
| Contact | Precious metal |
| Housing | Stainless steel |
| Wire Size | 30# silver plated copper UL, Teflon |
| Lead Wire Length | Rotor:250mm; Stator:250mm |
| Working Temperature | -20~+60℃ |
| Protection Grade | IP54 |
Main Applications
- Electric devices
- Medical facilities
- Industrial machinery
- LED industry
- Medical equipment
- Process control equipment
Product Images
Our Advantages
- 12,000 square meter production facility with 500+ employees
- Recognized as "National High and New Technology" enterprise with 69 patents
- Global partnerships with renowned enterprises and agents worldwide
- Over 10,000 successful designs for civil, military, commercial and industrial applications
- Established in 1996 with 20+ years of production and R&D experience
- Free custom slip ring solutions for various equipment requirements
- Fast delivery service
Frequently Asked Questions
What do we do?
We specialize in developing, designing, and manufacturing high quality slip rings, offering various solutions for rotating systems.
What is a slip ring?
A slip ring is an electromechanical device that enables power and electrical signal transmission between stationary and rotating structures. It improves mechanical performance, simplifies system operation, and eliminates damage-prone dangling wires.
What kinds of slip rings do we offer?
- Electrical Slip Rings (capsule, through-hole, miniature, etc.)
- Signal Slip Rings (USB 2.0/3.0, fiber optic rotary joints, high frequency, etc.)
- Pneumatic/Hydraulic Rotary Unions
- Custom Slip Rings
- Large volume series
How do I choose a slip ring?
Selection requires details about your application's operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. Contact us for assistance with custom/modified solutions.
Do you offer custom slip rings?
Yes, our engineers can develop perfect solutions for your specific needs. Contact us to discuss custom requirements.
