30 Circuit 300 RPM Capsule Slip Ring 240VAC 1A for Medical Equipment
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 회로 번호 | 30 | 현재 등급 | 1A |
|---|---|---|---|
| 전압 | 240vac | 작업 속도 | 0~300 Rpm |
| 작업 온도 | -20~+60C | 전기 소음 | ≤15mΩ |
| 접촉 자료 | 귀금속 | 와이어 크기 | 30# 은도금 구리 UL, 테플론 |
| 리드 와이어 길이 | 회전자 :250 밀리미터 ; 고정자 :250 밀리미터 | 습기 | ≤60%RH |
| 보호 등급 | IP54 | 스타일 | 소형 슬립 링 |
| 유형 | 전기 액세서리 | 연락처 인터페이스 | 금접점 |
| 케이블 색깔 | 칼라 코딩됩니다 | ||
| 강조하다 | 30 circuit capsule slip ring,300 RPM medical slip ring,240VAC 1A capsule slip ring |
||
제품 설명
Miniature 300 RPM Slip Ring with 30 Circuits Electrical Contacts
Premium Quality for Medical Equipment and Industrial Applications
Special Offer Available Exclusively on Alibaba

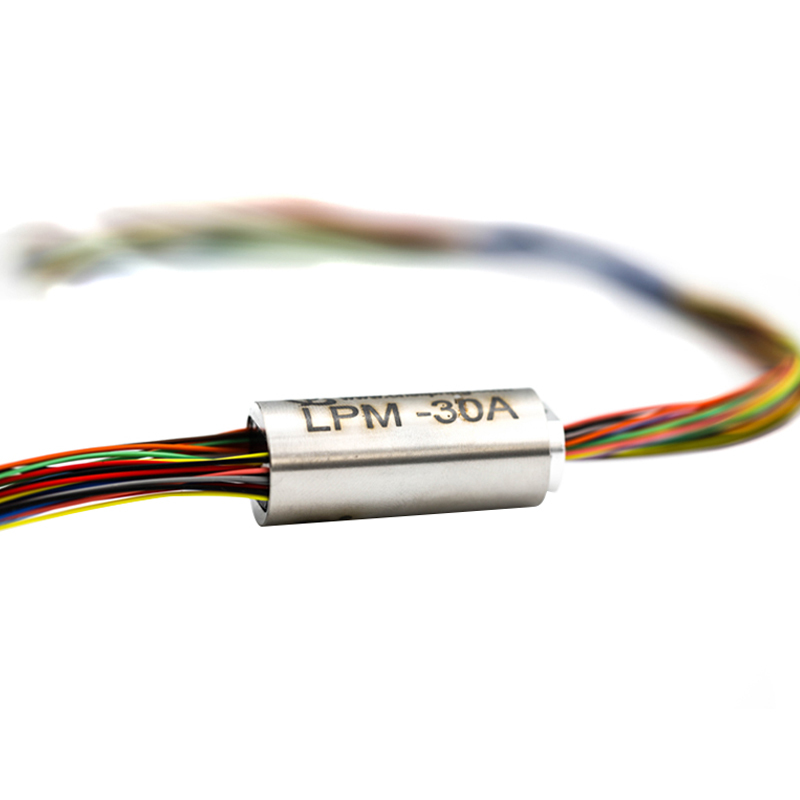

LPM-30A Slip Ring Description
The LPM-30A miniature slip ring with 30 circuits is designed for electromechanical systems requiring continuous rotation while transferring power or data between stationary and rotating components. This standard, off-the-shelf unit features gold contacts at the rotary interface and color-coded lead wires on both stator and rotor for simplified electrical connections.
LPM-30A Slip Ring Specifications
| Parameter | Value |
|---|---|
| Circuits | 30 |
| Current Rating | 1A |
| Voltage | 240VAC |
| Electrical Noise | ≤15mΩ |
| Working Speed | 0~300 RPM |
| Contact Material | Precious metal |
| Wire Size | 30# silver plated copper UL, Teflon |
| Lead Wire Length | Rotor:250mm; Stator:250mm |
| Working Temperature | -20~+60℃ |
| Humidity | ≤60%RH |
| Protection Grade | IP54 |
Primary Applications
- Electric devices and control systems
- Medical facilities and equipment
- Industrial machinery and automation
- LED display and lighting systems
- Process control equipment

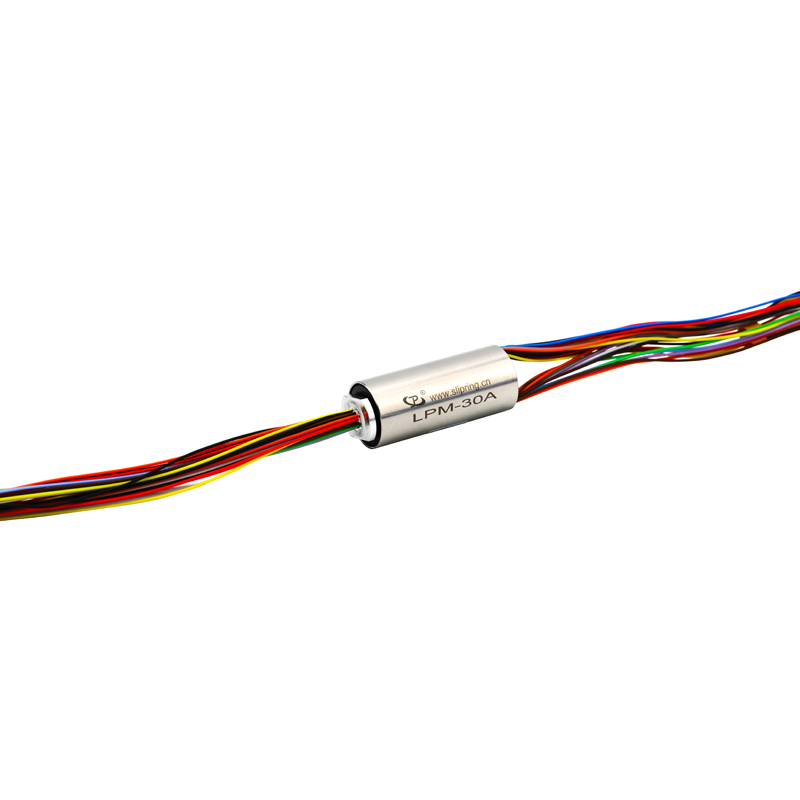

Product Visuals
Manufacturer Advantages
- 12,000 square meter production facility with 500+ employees
- Recognized as National High and New Technology enterprise with 69 patents
- Global partnerships with renowned enterprises and worldwide agents
- 10,000+ successful designs for civil, military, commercial and industrial applications
- Established in 1996 with 20+ years of production and R&D experience
- Custom slip ring solutions tailored to specific equipment requirements
- Efficient production and fast delivery capabilities
Frequently Asked Questions
What do we do?
We specialize in developing, designing, and manufacturing high-quality slip rings, offering comprehensive solutions for rotating systems.
What is a slip ring?
An electromechanical device enabling power and signal transmission between stationary and rotating structures, eliminating damage-prone dangling wires while improving mechanical performance.
Product offerings:
- Electrical Slip Rings (capsule, through-bore, miniature)
- Signal Slip Rings (USB, fiber optic, high frequency)
- Pneumatic/Hydraulic Rotary Unions
- Custom Slip Ring Solutions
- Large volume production capabilities
How to select a slip ring?
Consider your application's operating parameters including circuit count, voltage/amperage requirements, operating speed, and mounting configuration. Our engineers can assist with selection.
Custom solutions available?
Yes, our engineering team develops tailored solutions to meet specific application requirements. Contact us to discuss your needs.
