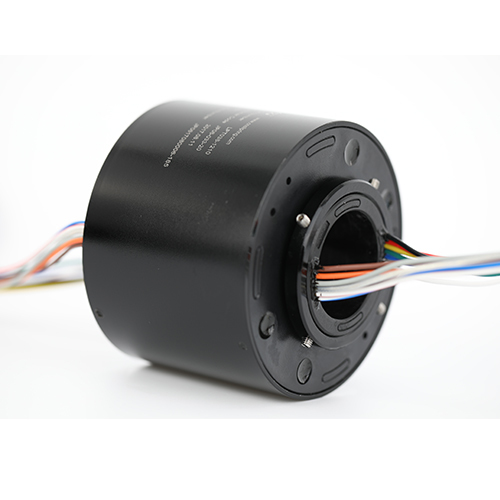

50mm Through Hole Slip Ring 6 Circuits 5A 300rpm
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 구멍 크기 | 50mm | 회로 | 6 |
|---|---|---|---|
| 회로 당 전류 | 5a | 작동 속도 | 0-300rpm |
| 전압 등급 | 380VAC/DC 이상 | 접촉 자료 | 귀금속 |
| 외부 직경 | 119mm | 작업 온도 | -10 ~ +50 |
| 작동하는 습도 | 60%RH 또는 더 높습니다 | 유전력 | 각 회로 사이에 ≥200V@50Hz |
| 절연 저항 | 50MΩ@ 500VDC | 전기 소음 | 30mΩ 민 |
| 리드 와이어 길이 | 300mm (11.811inch) | 주택 자료 | 알루미늄 합금 |
| 토크 | ≤9.25 g*m | ||
| 강조하다 | 50mm through hole slip ring,6 circuits slip ring 5A,300rpm slip ring with warranty |
||
제품 설명
High Performance Slip Ring - 50mm Hole Size, 6 Circuit, 5A
The LPT050-0605 slip ring features 6 connections with 5A per ring. Its 50mm unobstructed through-bore provides routing space for hydraulics, pneumatics or for concentric shaft mounting. Utilizing advanced fiber brush technology, this slip ring offers superior performance with multiple contact points per brush bundle, low contact force, and minimal wear rates.
Key Features
- 50mm through-bore design
- Compact 119mm outside diameter
- Modular configuration options
- Handles up to 20-50 amp circuits
- Operates at speeds up to 300 rpm continuous
- Steel bearings and machined shaft/housing for harsh environments
- Standard collar mounting (flange optional)
- Multiple lead exit options available
- Standard silver-plated rings (gold optional)
- Sealed unit for protection
- Continuous 360° rotation capability
Technical Specifications
| Parameter | Specification |
|---|---|
| Circuits | 1-24 circuits |
| Operating Speed | 0-300rpm |
| Working Temperature | -10°C to +50°C |
| Working Humidity | 60%RH or higher |
| Electrical Specifications | |
| Voltage Rating | 380VAC/DC or higher |
| Current Rating | 2A/5A/10A/15A per circuit |
| Dielectric Strength | ≥200V@50Hz between each circuit |
| Insulation Resistance | 50MΩ@ 500VDC |
| Electrical Noise | 30mΩ Min |
| Mechanical Specifications | |
| Contact Material | Precious metal |
| Lead Wire Length | Standard 300mm (11.811inch) |
| Housing Material | Aluminum alloy |
| Torque | ≤9.25 g*m (reference value) |
| Protection | IP50 |
Performance Advantages
- Efficient transfer of control and data signals
- Fiber brush technology enables maintenance-free operation (no lubrication required)
- Modular design allows customization through standard manufacturing techniques
- Custom configurations available for specific application requirements
Typical Applications
- Packaging and wrapping machinery
- Semiconductor handling systems
- Industrial automation equipment
- Exhibit display machinery
- Medical diagnostic equipment
- Rotary index tables
- Process control systems
- Emergency lighting systems
- Robotics and palletizing machines
- Heavy equipment turrets and cable reels
Manufacturer Information
- 12,000+ square meter production facility
- 500+ skilled employees
- Recognized as National High and New Technology enterprise
- Holder of 69 technology patents
- Global partnerships with leading industrial firms
- 10,000+ successful designs across multiple industries
- Established in 1996 with 20+ years of R&D experience
- Custom engineering solutions available
- Fast delivery on standard products
Frequently Asked Questions
What is a slip ring?
A slip ring is an electromechanical device that enables the transmission of power and electrical signals between stationary and rotating structures. It eliminates the need for dangling wires in rotating systems, improving mechanical performance and simplifying operation.
What types of slip rings do you provide?
- Electrical slip rings (capsule, through-bore, miniature)
- Signal slip rings (USB, fiber optic, high frequency)
- Pneumatic/hydraulic rotary unions
- Custom engineered solutions
- High-volume production models
How do I select the right slip ring?
Selection requires details about your application's operating parameters including circuit count, voltage/current requirements, operating speed, and mounting configuration. Our engineering team can assist with proper selection or custom design.
Do you provide custom slip ring solutions?
Yes, our engineering team can develop custom solutions tailored to your specific requirements. We offer free consultation and design services for specialized applications.
