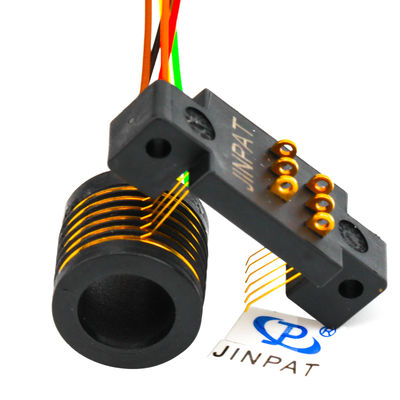

6 Circuit 240V Voltage Separate Slip Ring with 0~300 RPM for Electrical Test Equipment
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 회로 번호 | 6 | 현재 등급 | 2A |
|---|---|---|---|
| 전압 | 240 VAC | 작업 속도 | 0~300 Rpm |
| 작동 온도 | -20~+60C | 유전력 | 회로 사이에 500V@50Hz |
| 격리 | 100MΩ@500VDC | 접촉 자료 | 귀금속 |
| 와이어 크기 | 28# 은도금 구리 테플론 UL | 리드 와이어 길이 | 회전자: 250±5mm |
| 스타일 | 슬립 링을 분리하세요 | 고정자 연결 | 선택 과목 |
| 와이어 유형 | 색상으로 구분된 리드선 | 경계면 물질 | 금접점 |
| 설치 유형 | 설치가 용이함 | ||
| 강조하다 | 6 Circuit Separate Slip Ring,240V Voltage Electrical Slip Ring,0~300 RPM Rotary Slip Ring |
||
제품 설명
6 Circuit Separate Slip Ring with 240V Voltage for Electrical Test Equipment
Premium Quality Slip Ring for Continuous Rotation Applications
The LPS-06 separate slip ring is designed for electromechanical systems requiring continuous rotation while transferring power or data between stationary and rotating components. This standard unit features gold contacts at the rotary interface and color-coded lead wires for simplified electrical connections.
Key Features
- Separate stator and rotor design
- Capable of transmitting power and weak signal combinations
- Optional stator connection configurations
- Low electrical resistance
- Simple installation process
- Compact design for space-constrained applications
Performance Advantages
- Extended operational lifespan
- Rapid delivery available
- Customization options to meet specific requirements
Technical Specifications
| Parameter | Value |
|---|---|
| Circuits | 6 |
| Current Rating | 2A |
| Voltage | 240 VAC |
| Dielectric Strength | 500V@50Hz between circuits |
| Insulation | 100MΩ@500VDC |
| Working Speed | 0-300 RPM |
| Contact Material | Precious metal |
| Wire Specification | 28# silver plated copper Teflon UL |
| Lead Wire Length | Rotor: 250±5mm |
| Operating Temperature | -20°C to +60°C |
Typical Applications
- Electrical testing equipment
- CT scanning machines
- Compact robotic systems
- LED display technology
- Miniature electronic devices
Product Visualization
Manufacturer Profile
JINPAT Electronics, established in 1996, is a leading manufacturer specializing in industrial slip rings for diverse applications. The company maintains a comprehensive product line including capsule slip rings, through-bore slip rings, high-current slip rings, and custom solutions for specialized interfaces.
Corporate Advantages
- 12,000+ square meter production facility with 500+ employees
- Recognized as National High and New Technology enterprise
- Holder of 69 technology patents
- Global partnerships with industry leaders
- 10,000+ successful design implementations
- 20+ years of research and development experience
- Complimentary custom engineering solutions
- Expedited order fulfillment
