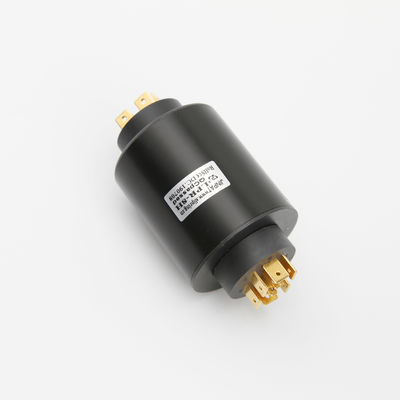

360 Degree Rotation 8 Circuit 240VAC Slip Ring Rotary Joint for Industrial Machinery
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 회로 번호 | 8 | 현재 등급 | 2ckt*5A, 6ckt*20A |
|---|---|---|---|
| 전압 | 240 VAC | 작업 속도 | 0~300 Rpm |
| 작동 온도 | -20~+60C | 유전력 | 회로 사이에 500V@50Hz |
| 격리 | 100MΩ@500VDC | 전기 소음 | ≤15mΩ |
| 접촉 자료 | 귀금속 | 주택 자료 | 엔지니어링 플라스틱 |
| 와이어 유형 | 은도금의 핀 | 보호 등급 | IP54 |
| 회전 각도 | 360도 | 연결 유형 | 핀 슬립 링 |
| 마찰력 | 낮은 | ||
| 강조하다 | 360 Degree Rotation Slip Ring,8 Circuit Rotary Joint,240VAC Swivel Joint |
||
제품 설명
360 Degree Rotation Swivel Joint 8 Circuit 240VAC 5A/20A 0~300 RPM Industrial Machinery Cable Reel Slip Ring
Bargain Price Only in Alibaba
Rotary Joint Slip Ring Description
The LPR series is a group of Pin Slip Rings designed and manufactured by JINPAT Electronics. This unit features an exquisite design that replaces wires with pins for connections, complying with RoHS standards. Its convenient installation makes it ideal for systems requiring power transmission in compact spaces with plug-and-play functionality.
The LPR-8H pin connection slip ring is suitable for any electromechanical system needing continuous rotation while transferring power or data between stationary and rotating parts. This standard off-the-shelf unit uses gold contacts at the rotary interface and color-coded lead wires on both stator and rotor for simplified electrical connections.
Rotary Joint Slip Ring Features
- Mercury-free unit with environmentally friendly design
- 360° rotating transmission capability
- Large current-carrying capacity
- No interference or data package loss
- Extremely low electrical noise and friction force
- Quick connection with spade terminal
Rotary Joint Slip Ring Advantages
- Optional circuit number configurations
- Long service life
- Maintenance free operation
Specifications
| Circuits | 8 |
|---|---|
| Current Rating | 2ckt*5A, 6ckt*20A |
| Voltage | 240 VAC |
| Dielectric Strength | 500V@50Hz between circuits |
| Insulation | 100MΩ@500VDC |
| Electrical Noise | ≤15mΩ |
| Working Speed | 0~300 RPM |
| Contact | Precious metal |
| Housing | Engineering plastic |
| Wire Size | Silver plated pin |
| Working Temperature | -20~+60℃ |
| Protection Grade | IP54 |
Rotary Joint Slip Ring Main Applications
- Electric devices
- CT machines
- Mini robots
- LED industry
- Mini-type devices
Outline Drawing
Product Display
Company Introduction
JINPAT Electronics, founded in 1996, is a leading manufacturer of slip rings committed to developing industrial slip rings for various applications. Our product range includes Capsule Slip Rings, Through-bore Slip Rings, Large-current Slip Rings, Coax Rotary Joints, Fiber Optic Slip Rings, Separate Slip Rings, and Pin Slip Rings as standard off-the-shelf units. We also support custom designs for specialized applications including Ethernet, USB, HDMI, Sensor, CAN Bus, Thermocouple, RS232, and RS422 interfaces. All products meet our quality management system certified by IS09001:2008/ISO14001:2015.
