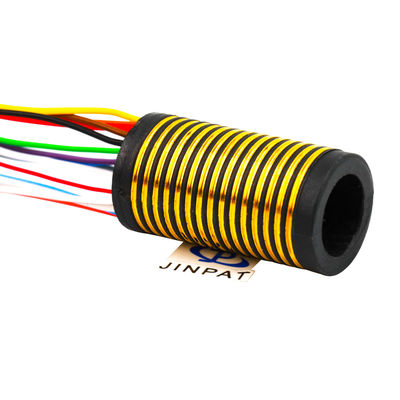

15 Circuit 100 rpm Separate Slip Ring with 250mm Lead Length for Smooth Electrical Transmission
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 최대 속도 | 100 rpm | 회로 수 | 15 |
|---|---|---|---|
| 전압 | 240 VAC / DC | 현재 등급 | 2A |
| 온도 범위 | -20 ℃ ~ +60 ℃ | 작동 습도 | 60%RH 또는 더 높습니다 |
| 접촉 자료 | 금에 대한 금 | 리드 크기 | 28 # 은도금된 구리 |
| 리드 길이 | 표준 250 밀리미터 (9.843inch) | 유전력 | 각 회로 사이의 ≥200 VAC @50Hz |
| 본체 재질 | 엔지니어링 플라스틱 | 절연 저항 | 50 MΩ @ 500 VDC |
| 전기 소음 | ≤35mΩ | 작동 속도 | 0-100 rpm |
| 대역폭 전송 | 높은 | ||
| 강조하다 | 15 Circuit Slip Ring,100 rpm Separate Slip Ring,250mm Lead Length Rotary Electrical Connector |
||
제품 설명
15 Circuit Smooth Running Low Electrical Noise Separate Slip Ring
Gold to Gold Contact for Electrical Contacts Contact Materials
Separate slip ring consists of two parts: rotor and brush block. The rotor part can have a through bore type, making it suitable for space-limited installations. This slip ring can use pins instead of lead wires to handle larger currents.
The LPS-15 is a standard unit featuring gold contacts at the rotary interface with color-coded lead wires on both stator and rotor for simplified electrical connections.
Key Advantages
- 250mm standard lead length
- Gold to gold contact materials for extended lifespan
- Flexible, color-coded, silver-plated wiring
- Capable of transmitting both power and signal data
- High bandwidth transfer capability
Primary Applications
- Indexing tables
- CCTV pan/tilt camera mounts
- Robotics and rotary sensors
- Emergency illumination equipment
- Exhibit and display equipment
- Medical equipment
- Aviation, military, and instrumentation
- Miniature wire-rolling machines
Customization Options
- Circuits & current capacity
- Operational speed
- Dimensions
- Lead wire length
- Contact and housing materials
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Speed | 0-100 rpm |
| Number of Circuits | 15 |
| Voltage | 240 VAC/DC |
| Current Rating | 2A |
| Temperature Range | -20℃ to +60℃ |
| Working Humidity | 60%RH or higher |
| Contact Material | Gold to Gold |
| Lead Size | 28 AWG silver-plated copper |
| Lead Length | Standard 250 mm (9.843 inch) |
| Dielectric Strength | ≥200 VAC @50Hz between circuits |
| Body Material | Engineering plastic |
| Insulation Resistance | 50 MΩ @ 500 VDC |
| Electrical Noise | ≤35mΩ |
