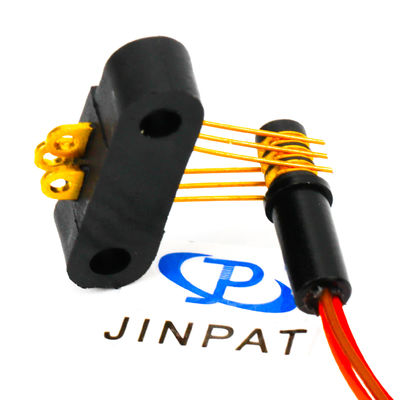

3 Circuits 300 Rpm 240 VAC Separate Slip Ring for Machinery Equipment Electrical Contacts
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 회로 번호 | 3 | 현재 등급 | 2A |
|---|---|---|---|
| 전압 | 240 VAC | 작업 속도 | 0~300 Rpm |
| 작동 온도 | -20~+60C | 스타일 | 소형 슬립 링 |
| 전기 소음 | ≤70mΩ | 접촉 자료 | 귀금속 |
| 와이어 크기 | 32# 은도금 구리 테프론 UL | 리드 와이어 길이 | 회전자 :250 밀리미터 ; 고정자 :250 밀리미터 |
| 유형 | 전기 액세서리 | 로터리 인터페이스 | 금접점 |
| 케이블 색깔 | 칼라 코딩됩니다 | 설치 | 설치가 용이함 |
| 공간 요구 사항 | 작은 공간에 적합 | ||
| 강조하다 | 3 Circuits Separate Slip Ring,300 Rpm Electrical Slip Ring,240 VAC Rotary Slip Ring |
||
제품 설명
Separate Slip Ring with 3 Circuits 300 Rpm Working Speed for Machinery Equipment Electrical Contacts and Contact Materials
Industrial Slip Ring Description
The LPS-03 separate slip ring is designed for electromechanical systems requiring continuous rotation while transferring power or data between stationary and rotating components. This standard unit features gold contacts at the rotary interface and color-coded lead wires for simplified electrical connections.
Key Features
- Separate stator and rotor design
- Capable of transmitting power and weak signals
- Optional stator connection configurations
- Low resistance for efficient operation
- Simple installation process
- Compact design for space-constrained applications
Product Advantages
- Extended operational lifespan
- Fast delivery options
- Customization capabilities
Technical Specifications
| Circuits | 3 |
|---|---|
| Current Rating | 2A |
| Voltage | 240 VAC |
| Electrical Noise | ≤70mΩ |
| Working Speed | 0-300 RPM |
| Contact Material | Precious metal |
| Wire Specifications | 32# silver plated copper Teflon UL |
| Lead Wire Length | Rotor: 250mm; Stator: 250mm |
| Operating Temperature | -20°C to +60°C |
Applications
- Electrical devices
- Medical facilities
- Miniature robotics
- LED lighting systems
- Compact medical equipment
- Miniature electronic devices
Product Visualization
Manufacturer Profile
JINPAT Electronics, established in 1996, is a leading manufacturer specializing in industrial slip rings. The company offers a comprehensive range of standard products including Capsule Slip Rings, Through-bore Slip Rings, Large-current Slip Rings, and Fiber Optic Slip Rings, with full customization capabilities for specialized applications.
All products are manufactured under strict quality control standards, certified by ISO9001:2008 and ISO14001:2015 quality management systems.
