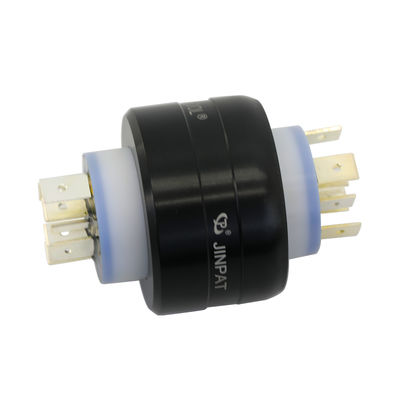

JINPAT 6-Pole 1000RPM Mercury Slip Ring with 6 Channels for Stable Power and Signal Transfer
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 극의 수 | 6 | 최대 속도 | 1000rpm |
|---|---|---|---|
| 작동 온도 | - 30C~ +60C | 전압 정격 | 250VAC/DC 또는 더 높습니다 |
| 현재 등급 | 30A@ 2개 회로;4A@ 2개 회로 | 유전력 | 각 회로 간 ≥200V@200Hz |
| 절연 저항 | > 25mΩ | 전기 소음 | ≤30mΩ |
| 접촉 저항 | <1m> | 채널 수 | 6Channels |
| 아웃케이스 소재 | 알루미늄 합금 또는 스테인레스 스틸 | 작동 속도 | 0-1000RPM |
| 신호 호환성 | 미세 전압, 전류, EMF, 열전대, 스트레인 게이지, 오디오, 비디오, 고주파 | 전력 호환성 | 전력 연결 |
| 특수기술 | 특수 절연, 밀봉 및 전도성 기술 | ||
| 강조하다 | 6-Pole Slip Ring,1000RPM Mercury Slip Ring,6 Channels Rotary Electrical Connector |
||
제품 설명
JINPAT 6-Pole Mercury Slip Ring with Special Sealing Materials
Premium Electrical Contacts for Stable Connection
Special promotional price available exclusively on Alibaba
JINPAT rotating electrical connectors utilize advanced insulation, sealing, and conductive technologies. The outer casing is constructed from durable aluminum alloy or stainless steel, designed for reliable performance in various rotating applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Poles | 6 |
| Operating Speed | 0-1000rpm |
| Working Temperature | -30℃ to +60℃ |
| Voltage Rating | 250VAC/DC or higher |
| Current Rating | 30A @ 2 circuits; 4A @ 2 circuits |
| Dielectric Strength | ≥200V @ 200Hz between each circuit |
| Insulation Resistance | >25MΩ |
| Electrical Noise | ≤30mΩ |
Key Advantages
- Mercury-free design compliant with CE RoHS standards
- Exceptionally low electrical noise
- Minimal contact resistance (less than 1mΩ)
- Maintenance-free operation with superior reliability compared to traditional slip rings
- Ideal for both signal and power transfer in rotating equipment
Primary Applications
- Spinning LED displays and wind turbines
- Electroplating lines and power connections
- Resistor cutting machines and speed dome cameras
- Packaging machinery and heating rollers
- Laminating equipment and wind machines
- Rotary stages and cable wheels
- Circular knitting machines and coloring devices
- Robotics and rotary lamp boxes
- Medical equipment and index tables
Product Images
Company Advantages
- 12,000 square meter production facility with 500+ employees
- Recognized as National High and New Technology enterprise with 69 patents
- Global partnerships with renowned companies and worldwide agents
- 10,000+ successful designs across civil, military, commercial, and industrial applications
- 20+ years of experience since founding in 1996
- Custom slip ring solutions tailored to specific equipment requirements
- Fast delivery times
Frequently Asked Questions
What do we do?
We specialize in developing, designing, and manufacturing high-quality slip rings, providing comprehensive solutions for rotating systems.
What is a slip ring?
A slip ring is an electromechanical device that enables power and signal transmission between stationary and rotating structures, eliminating the need for dangling wires and improving system reliability.
Product offerings
- Electrical slip rings (capsule, through-bore, miniature)
- Signal slip rings (USB, fiber optic, high frequency)
- Pneumatic/Hydraulic Rotary Unions
- Custom slip ring solutions
- Large volume production capabilities
How to select a slip ring?
Proper selection requires details about your application's operating parameters including circuit count, voltage/current requirements, operating speed, and mounting configuration.
Custom solutions
We offer custom slip ring designs tailored to your specific requirements. Our engineering team will develop the perfect solution for your application needs.
