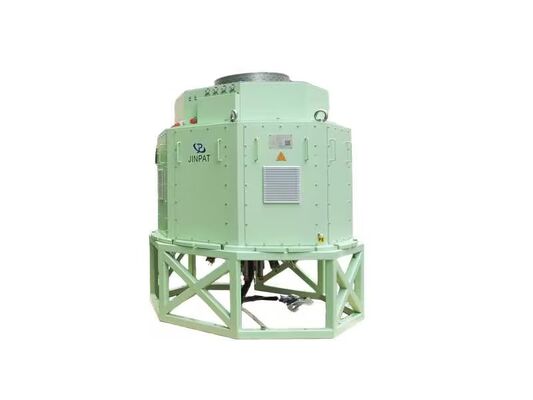

Modular Rotary System Slip Ring with Hydraulic Pneumatic Transmission, High Voltage Power (3300V, 720A), and Fiber Optic Rotary Joints
제품 상세 정보
| 유압 채널 | 8개 채널 | 최대 수압 | 5 MPa |
|---|---|---|---|
| 공압 채널 | 2개 채널 | 고전압 전력 | 3300V, 720A |
| 광섬유 채널 | 6채널 멀티모드 | 방향타 각도 표시 | ±180° 양방향 |
제품 설명
This integrated multi-function slip ring system combines hydraulic, pneumatic, high-voltage power, signal, and fiber optic transmission in a single compact rotary interface, delivering exceptional performance for complex industrial applications.
It features:
- 8-channel hydraulic rotary system (max pressure 5 MPa) and 2-channel pneumatic transmission
- 6 high-voltage power lines (3300V, up to 720A), low-voltage auxiliary power, industrial Ethernet, and 6-channel multi-mode fiber optic rotary joints
- Built-in environmental and monitoring modules including heater, dehumidification and cooling fan system, infrared temperature sensor, potentiometer, and rudder angle indicator
- Modular structure with aviation connectors, terminal copper busbars, and junction box options for fast installation and maintenance
- High-precision potentiometer with ±180° bidirectional rudder angle indication
Designed for high-reliability systems, it significantly improves integration level, reduces system complexity, and ensures stable operation under demanding working conditions.
