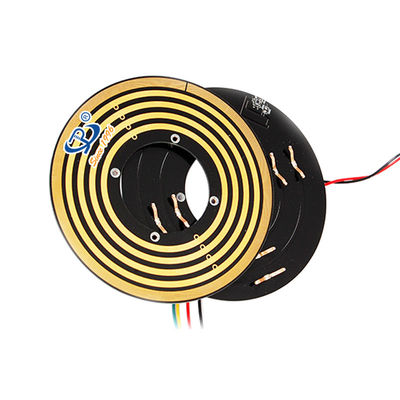

40 mm Inner Diameter 5 Circuits 24V Voltage Rating Pancake Slip Ring for Coiling Machine
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 회로 | 5회로 | 전압 정격 | 24V |
|---|---|---|---|
| 현재 등급 | 회로 당 1A | 접촉 자료 | 귀금속 |
| 작업 속도 | 0~150rpm | 내경 | φ40mm |
| 유전력 | ≥300V@50Hz | 주택 자료 | FR-4 |
| 절연 저항 | 100MΩ@100VDC | 와이어 길이 | 고정자 와이어:300mm 로터 와이어:300mm |
| 작동 온도 | -20 ° C ~+60 ° C | 습기 | ≤60%RH |
| 회전 속도 | 높은 | 설치방법 | 플랜지에 고정된 PCB 보드 |
| 두께 | 6mm | ||
| 강조하다 | 40 mm Inner Diameter Pancake Slip Ring,5 Circuits Flat Slip Ring,24V Voltage Rating LPK Series Slip Ring |
||
제품 설명
ID 40 mm 5 Circuits Flat Slip Ring with Optional Voltage for Coiling Machine
Product Overview
The LPK series pancake slip rings by JINPAT feature an ultra-thin 6mm design, specifically engineered for rotation systems with limited vertical installation space. The central hole design with surrounding copper ring and brush contact maximizes space efficiency.
Key Features
- High rotating speed capability
- Reliable contact with lightweight construction
- Exceptionally low physical noise operation
- Continuous 360° rotation for power and signal transmission
- Stable connection without interference or drops
Product Advantages
- Pre-configured photoelectric encoder option
- Available with solid or hollow shaft configurations
- Fast delivery times
- Custom engineering solutions available
Technical Specifications
| Electrical Specifications | Mechanical Specifications | ||
|---|---|---|---|
| Circuits | 5 circuits × 1A | Working Speed | 0-150 rpm |
| Working Voltage | 24V | Contact Material | Nobel Metal |
| Dielectric Strength | ≥300V@50Hz | Housing Material | FR-4 |
| Insulation | 100MΩ@100VDC | Wire Length | Stator/Rotor: 300mm each |
| Environmental Specifications | Additional Information | ||
| Temperature Range | -20°C to +60°C | Installation Method | PCB board mounts to customer's flange |
| Humidity | ≤60% RH | Inner Diameter | Φ40mm |
Industrial Applications
- Packaging and wrapping machinery
- Semiconductor handling systems
- Industrial automation equipment
- Exhibit display machinery
- Medical diagnostic equipment
- Rotary index tables
- Process control systems
