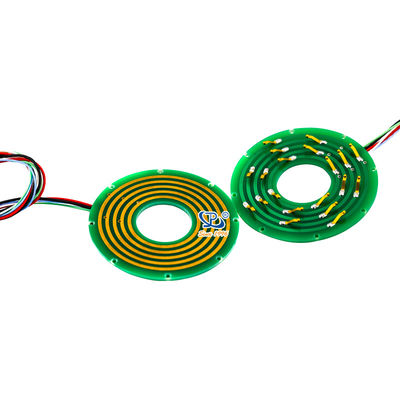

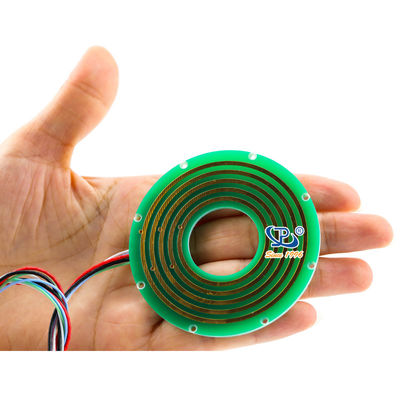

5 Circuits Pancake Slip Ring with 360° Rotation and 24VAC/DC Voltage Rating for Reliable Electrical Transmission
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 회로 | 5회로 | 전압 정격 | 24VAC/DC |
|---|---|---|---|
| 현재 등급 | 회로 당 1A | 접촉 자료 | 금에 대한 금 |
| 작업 속도 | 0 ~ 50rpm | 작동 전압 | 380VDC/AC |
| 유전력 | ≥1000V@50Hz(전류) ≥500V@50Hz(신호) | 주택 자료 | 알루미늄 합금의 산화 흑색 |
| 절연 저항 | 500MΩ@500VDC(전류) 100MΩ@300VDC(신호) | 와이어 길이 | 고정자 와이어:700mm 로터 와이어:700mm |
| 작동 온도 | -20 ° C ~+60 ° C | 습기 | ≤60%RH |
| IP 등급 | IP54 | 두께 | 6mm |
| 회전 속도 | 높은 | ||
| 강조하다 | 5 Circuits Pancake Slip Ring,360° Rotation Slip Ring,24VAC/DC Voltage Rating Pancake Slip Ring |
||
제품 설명
5 Circuit Pancake Slip Rings with Gold-Gold Contact Wide Range Temperature
Product Overview
The LPK series pancake slip rings by JINPAT feature an ultra-thin 6mm design, ideal for rotation systems with limited vertical installation space. These compact units combine copper rings and brush contacts around a central hole for maximum space efficiency.
Key Features
- High rotating speed capability
- Reliable gold-to-gold contact with minimal noise
- Continuous 360° power and signal transmission
- Stable connection without interference or drops
- Compact pancake design saves vertical space
Product Advantages
- Pre-configured photoelectric encoder option
- Choice of solid or hollow shaft configurations
- Rapid delivery available
- Custom engineering solutions
Technical Specifications
| Circuits | 4 circuits × 10A + 9 signal circuits | Working Speed | 0-50 rpm |
|---|---|---|---|
| Working Voltage | 380V DC/AC | Contact Material | Gold to gold |
| Dielectric Strength | ≥1000V@50Hz (Current) ≥500V@50Hz (Signal) |
Housing | Oxidation black aluminum alloy |
| Insulation | 500MΩ@500VDC (Current) 100MΩ@300VDC (Signal) |
Wire Length | Stator/Rotor: 700mm each |
| Temperature Range | -20°C to +60°C | Installation Method | Stator fixed on customer spindle |
| Humidity | ≤60% RH | IP Rating | IP54 |
Typical Applications
- Packaging and wrapping machinery
- Semiconductor handling systems
- Industrial automation equipment
- Exhibit display mechanisms
- Medical diagnostic equipment
- Rotary index tables
- Process control systems
Company Highlights
- 12,000+ sqm production facility with 500+ employees
- Recognized as National High and New Technology enterprise
- Holder of 69 technology patents
- 20+ years experience since 1996
- 10,000+ successful designs across industries
- Global partnerships with major enterprises
- Free custom engineering solutions
Frequently Asked Questions
What is a slip ring?
An electromechanical device enabling power/signal transmission between stationary and rotating structures, eliminating dangling wires and improving system reliability.
What slip ring types are available?
Our portfolio includes electrical slip rings, signal transmission models (USB/Fiber optic), pneumatic/hydraulic unions, and fully custom solutions.
How to select the right slip ring?
Consider your application's circuit requirements, voltage/current specifications, operating speed, and mounting configuration. Our engineers can assist with selection.
Do you offer custom solutions?
Yes, our engineering team develops tailored solutions for unique applications. Contact us with your requirements for a customized proposal.
