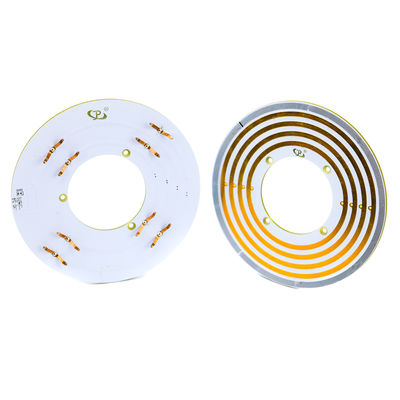

4-Circuit 5A Pancake Slip Ring with 40mm Hole Size for Industrial Automation and Medical Equipment
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 회로 번호 | 4 | 현재 등급 | 5a |
|---|---|---|---|
| 전압 | 24V DC/AC | 작업 속도 | 0~300 Rpm |
| 작동 온도 | -20~+60C | 유전력 | ≥100VAC@50Hz |
| 절연 저항 | 50MΩ@100VDC | 전기 소음 | ≤70mΩ |
| 접촉 자료 | 귀금속 | 주택 자료 | FR-4 |
| 와이어 길이 | 고정자: 300mm | 구멍 직경 | φ40mm |
| 두께 | 6mm | 연락처 유형 | 금접점 |
| 스타일 | 팬케이크 슬립 링 | ||
| 강조하다 | 4-Circuit Pancake Slip Ring,5A Current Slip Ring,40mm Hole Slip Ring |
||
제품 설명
4-Circuit 5A Pancake Slip Ring 40mm Hole Size
Industrial Automation & Medical Equipment Electrical Contacts
Bargain Price Only in Alibaba
The LPK series is a group of Pancake Slip Rings manufactured by JINPAT with thickness as small as 6mm. Designed exclusively for rotation systems with limited vertical installation space, these slip rings feature both copper ring and brush contact surrounding a central hole for maximum space efficiency.
The LPKS040-0405 pin connection slip ring is ideal for any electromechanical system requiring continuous rotation while transferring power or data between stationary and rotating parts.
This standard, off-the-shelf unit features gold contacts at the rotary interface and color-coded lead wires on both stator and rotor for simplified electrical connections.
LPKS040-0405 Slip Ring Features
- High rotating speed capability
- Reliable contact with lightweight design
- Extremely low physical noise operation
- 360° continuous rotation for power and signal transmission
- No interference or connection drop
- Rapid delivery available
Custom Solutions Available
- Ready-made photoelectric encoder options
- Optional solid and hollow shafts
- Other specialized solutions available
LPKS040-0405 Technical Specifications
| Circuits | 4 |
|---|---|
| Current Rating | 4ckt*5A |
| Voltage | 24 VDC/AC |
| Dielectric Strength | Between circuits ≥100VAC@50Hz |
| Insulation | 50MΩ@100VDC |
| Electrical Noise | ≤70mΩ |
| Working Speed | 0~300 RPM |
| Contact Material | Precious metal |
| Housing Material | FR-4 |
| Wire Length | Stator: 300mm |
| Hole Diameter | φ40mm |
| Working Temperature | -20~+60℃ |
Primary Applications
- Electric devices
- CT machines
- Mini robots
- LED industry equipment
- Miniature devices
Product Visuals
Company Advantages
- 12,000 square meter facility with 500+ employees
- National High and New Technology award recipient with 69 patents
- Global partnerships with famous enterprises worldwide
- 10,000+ successful designs across civil, military, commercial and industrial applications
- Established in 1996 with 20+ years of production and R&D experience
- Free custom slip ring solutions for specialized equipment requirements
- Fast delivery service
Frequently Asked Questions
What do we do?
We focus on developing, designing, and manufacturing high quality slip rings, offering various solutions for rotating systems.
What is a slip ring?
A slip ring is an electromechanical device that allows transmission of power and electrical signals between stationary and rotating structures. It improves mechanical performance, simplifies system operation, and eliminates damage-prone dangling wires.
What kinds of slip rings do we offer?
- Electrical Slip rings (capsule, through-hole, miniature, etc)
- Signal Slip rings (USB, fiber optic rotary joint, high frequency, etc)
- Pneumatic/Hydraulic Rotary Unions
- Custom Slip Rings
- Large volume series
How do I choose a slip ring?
Selection requires details about your application's operating parameters including circuits, voltage/amps per circuit, speed, and mounting type. Contact us for assistance with custom/modified solutions.
Do you offer custom slip rings?
Yes, our engineers will develop perfect solutions for your specific needs. Contact us to begin your custom project.
