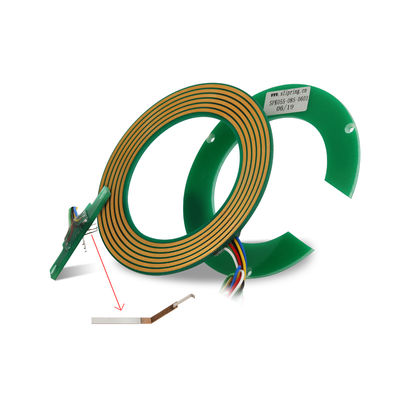

High-Speed 5A Current Rating Pancake Slip Ring with 25mm Hole Size and 220VDC/AC Voltage Rating
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 회로 | 2 회로 | 현재 등급 | 회로 당 5A |
|---|---|---|---|
| 전압 정격 | 220VDC/AC | 접촉 자료 | 귀금속 |
| 내경 | Φ25mm | 작업 속도 | 0 ~ 300rpm |
| 유전력 | ≥300VDC@50Hz(전류), ≥100VDC@50Hz(신호) | 절연 저항 | 100MΩ@300VDC(전류), 100MΩ@100VDC(신호) |
| 주택 자료 | FR-4 | 와이어 길이 | 고정자 와이어: 300mm, 로터 와이어: 300mm |
| 작동 온도 | -20 ° C ~+60 ° C | 설치방법 | M2 나사로 고정 |
| 회전 속도 | 높은 | 두께 | 6mm |
| 신호 전송 | 360' 회전 | ||
| 강조하다 | 5A Current Rating Pancake Slip Ring,25mm Hole Size Flat Slip Ring,220VDC/AC Voltage Rating LPK Series Slip Ring |
||
제품 설명
High-Speed 5A Flat Slip Ring with 2 Circuits 25mm Hole Size
Compact Pancake Slip Ring for Current and Signal Transmission
Bargain Price Only in Alibaba
The LPK series pancake slip rings by JINPAT feature an ultra-thin 6mm design, specifically engineered for rotation systems with limited vertical installation space. The innovative copper ring and brush contact configuration around a central hole maximizes space efficiency.
Key Features
- High rotating speed capability
- Reliable contact with lightweight design
- Exceptionally low physical noise operation
- Continuous 360° power and signal transmission
- Stable connection without interference or drops
Product Advantages
- Pre-installed photoelectric encoder
- Choice of solid or hollow shaft options
- Fast delivery service
- Custom engineering solutions available
Technical Specifications
| Electronic & Electrical | Mechanical |
|---|---|
| Circuits: 2 circuits × 5A + 8 signal circuits | Working Speed: 0-300rpm |
| Inner Diameter: Φ25mm | Contact Material: Nobel Metal |
| Working Voltage: 220VDC/AC | Housing Material: FR-4 |
| Dielectric Strength: ≥300VDC@50Hz (Current) ≥100VDC@50Hz (Signal) | Wire Length: Stator/Rotor 300mm each |
| Insulation: 100MΩ@300VDC (Current) 100MΩ@100VDC (Signal) | |
| Environment | Remarks |
| Temperature Range: -20°C to +60°C | Installation: Fixed with M2 screws on customer's flange |
Primary Applications
- Packaging/wrapping machinery
- Semiconductor handling systems
- Industrial machinery
- Exhibit display machinery
- Medical equipment
- Rotary index tables
- Process control equipment
