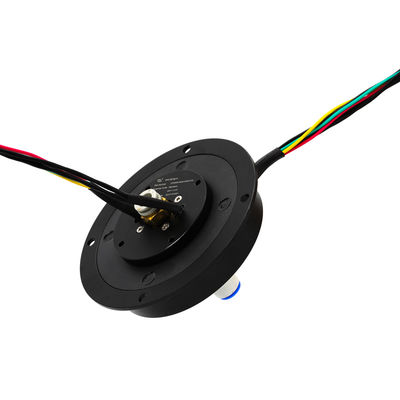

JINPAT Pancake Slip Ring with 10 Circuits 5A per Circuit and 220VDC/AC Voltage Rating for Industrial Applications
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 회로 | 10회로 | 현재 등급 | 회로 당 5A |
|---|---|---|---|
| 전압 정격 | 220VDC/AC 이상 | 접촉 자료 | 귀금속 |
| 작업 속도 | 0 ~ 50rpm | 유전력 | ≥500VAC@50Hz(전류) ≥300VAC@50Hz(신호) |
| 절연 저항 | 300MΩ@500VDC(전류) 100MΩ@300VDC(신호) | 작동 온도 | -40 ° C ~+60 ° C |
| 습기 | ≤60%RH | IP 등급 | IP54 |
| 와이어 길이 | 고정자 와이어:1000mm 로터 와이어:1000mm | 주택 자료 | 알루미늄 합금 |
| 두께 | 6mm | 이더넷 회로 | 1회로*100M |
| 연락처 유형 | 노벨 메탈 | ||
| 강조하다 | 10 Circuits Pancake Slip Ring,5A per Circuit Slip Ring,220VDC/AC Voltage Rating Rotary Electrical Connector |
||
제품 설명
JINPAT Pancake Slip Ring 10 Circuits 5A Ethernet 220VDC/AC Precious Metal Contacts
Bargain Price Only in Alibaba
The LPK series is a group of Pancake Slip Rings manufactured by JINPAT with thickness as small as 6mm. Designed exclusively for rotation systems with limited vertical installation space, these slip rings feature both copper ring and brush contact surrounding a central hole for maximum space efficiency.
Key Features
- High rotating speed capability
- Reliable contact with lightweight design
- Extremely low physical noise operation
- 360° continuous rotation for power and signal transmission
- No interference or connection drop during operation
Product Advantages
- Ready-made photoelectric encoder option
- Choice of solid or hollow shafts
- Rapid delivery available
- Custom solutions tailored to your needs
Technical Specifications
| Electronic & Electrical | Mechanical | ||
|---|---|---|---|
| Circuits | 4 circuits × 5A / 1 circuit × 100M Ethernet | Working Speed | 0-50rpm |
| Working Voltage | 220VDC/AC | Contact | Nobel Metal |
| Dielectric Strength | ≥500VAC@50Hz (Current) ≥300VAC@50Hz (signal) | Housing | Sanding oxidation black of aluminum alloy |
| Insulation | 300MΩ@500VDC (Current) 100MΩ@300VDC (signal) | Wire Length | Stator Wire: 1000mm Rotor Wire: 1000mm |
| Environment | Remarks | ||
| Temperature | -40°C to +60°C | Installation Method | Rotor fixed on customer-provided flange |
| Humidity | ≤60%RH | ||
| IP Rating | IP54 | ||
Main Applications
- Packaging and wrapping machinery
- Semiconductor handling systems
- Industrial machinery
- Exhibit display machinery
- Medical equipment
- Rotary index tables
- Process control equipment
Company Advantages
- 12,000+ square meter facility with 500+ employees
- Recognized as "National High and New Technology" company with 69 patents
- Long-term partnerships with global enterprises worldwide
- 10,000+ successful designs for civil, military, commercial and industrial applications
- Established in 1996 with 20+ years of production and R&D experience
- Free custom slip ring solutions for various equipment requirements
- Fast delivery options available
Typical Application
Company Information
Frequently Asked Questions
What do we do?
We focus on developing, designing, and manufacturing high quality slip rings, offering various solutions for rotating systems.
What is a slip ring?
A slip ring is an electromechanical device that allows transmission of power and electrical signals from stationary to rotating structures. It improves mechanical performance, simplifies system operation, and eliminates damage-prone wires in movable joints.
What kinds of slip rings do we offer?
- Electrical Slip Rings (capsule, through-hole, miniature)
- Signal Slip Rings (USB 2.0/3.0, fiber optic rotary joints, high frequency)
- Pneumatic/Hydraulic Rotary Unions
- Custom Slip Rings
- Large volume series
How do I choose a slip ring?
Selection requires details about your application's operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. Contact us for assistance in selection or custom solutions.
Do you offer custom slip rings?
Yes, our engineers develop perfect custom solutions tailored to your specific needs. Contact us to discuss your requirements.
